An NV-compatible optic has dedicated night vision brightness settings, set below the lowest daylight setting. They are too dim to see with the naked eye but show as a clean aiming point through an image intensifier. Normal settings, even the dimmest, are too bright for a tube: the dot blooms into a halo and swamps the image. When a spec sheet says "NV-compatible", look for the number of NV settings and how you reach them, because that is what makes the phrase mean something.
Clip a night vision unit behind a red dot on its lowest daylight setting and you will see the problem at once. Instead of a neat point you get a bloomed, haloed ball that hides the target. The dot that was barely visible to your eye a moment ago is far too bright under the tube.
Key takeaways
- NV settings sit below the daylight range and are invisible to the naked eye; through an intensifier they show as a small, defined dot.
- The number of NV settings varies widely: 2 on the Holosun HS507C X2, 3 on the SIG ROMEO4XT-PRO and 10 on EOTech's EXPS3 and XPS3.
- EOTech builds night vision into the model name: the EXPS3 and XPS3 are night vision compatible, and the EXPS2 and XPS2 are not.
- On Holosun solar models, Auto mode drops to an NV-level setting in darkness, which can make a working sight look dead to the naked eye.
- Night vision pairs with infrared illumination; lights such as the Streamlight TLR-VIR II combine white light with an 850 nm IR illuminator and IR laser.
Why tubes and normal settings don't mix
An image intensifier amplifies faint light enormously. An emitter designed to be seen by the unaided eye puts out far more light than a tube needs, even on its lowest daylight setting. The dot blooms into a ragged ball much larger than its nominal MOA size, and on tubes with automatic brightness control the bright spot can pull the rest of the image down, darkening the scene you are trying to identify.
True NV settings solve this by cutting output below the threshold of the naked eye. Through the tube they show as a small, defined dot sitting naturally in the image. Without the tube you see nothing, which is the point but also a trap. Leave the sight in an NV setting after a night session, and the "dead" optic you pick up the next morning is simply too dim for your eye.
What "NV-compatible" should mean on a spec sheet
Look for the specifics rather than the phrase. Here is how the makers we stock describe their settings:
| Optic | Daylight settings | NV settings | Notes |
|---|---|---|---|
| Holosun HS507C X2 | 10 | 2 | The 507C X3 changes this to 8 daylight and 4 NV |
| Holosun EPS family, AEMS PRO X2 | 8 | 4 | |
| SIG ROMEO5 Gen II | 10 | 2 | |
| SIG ROMEO4XT-PRO | 9 | 3 | Dedicated NV override switch; SIG says it is optimised for Gen 3+ devices |
| SIG ROMEO-X Pro | 15 in total, including 3 NV | ||
| Trijicon RMR Type 2 Adjustable LED | 8 in total, including 2 NV and 1 super bright | ||
| Primary Arms SLx 3X MicroPrism | 13 | 3 | |
| EOTech EXPS3, XPS3 | 20 | 10 | For Gen I to Gen III+ devices |
| EOTech EFLX | 8 | 1 | |
| EOTech EXPS2, XPS2 | 20 (XPS2) | None | Non-night vision models |
Beyond the count, check two things:
- How you get into the NV range. You will be switching in the dark, often in gloves. A dedicated control, such as the NV override switch on the ROMEO4XT-PRO, beats counting button presses from memory.
- Where the tube sits. With the night vision device behind the sight, between the sight and your eye, a red dot with NV settings works as described here. Mounting a clip-on in front of a magnified scope is a different setup with its own alignment demands.
Holographic sights and the EOTech naming split
EOTech puts the distinction into its model numbers. The 3 models, the EXPS3 and XPS3, are night vision compatible, with 20 daylight settings plus 10 for Gen I to Gen III+ devices. The 2 models, the EXPS2 and XPS2, are EOTech's non-night-vision versions. Otherwise the pairs are close: they share the 68 MOA ring and 1 MOA dot reticle and run on a CR123. EOTech does list a greater water depth for the XPS3 (10 metres) than for the XPS2 (3 metres). If night work is at all likely, buying the 3 version at the outset is far cheaper than finding out later. The differences are set out in our EOTech holographic sights explained guide, and the full range is in our holographic sights collection.
The brightness ladder in practice
| Setting band | Visible to the naked eye? | Through an intensifier | Use |
|---|---|---|---|
| Upper daylight settings | Yes, even against bright sky | Severe bloom | Daylight shooting |
| Lower daylight settings | Yes, in dim conditions | Still blooms | Dusk, indoor ranges |
| Dedicated NV settings | No | Small, defined aiming point | Behind an image intensifier |
The routine that follows is simple. Learn exactly which presses or switch positions take you from your usual daylight setting into the NV band, and rehearse it until you can do it without thinking. Then rehearse coming back, because that is the step people forget.
Expert tip

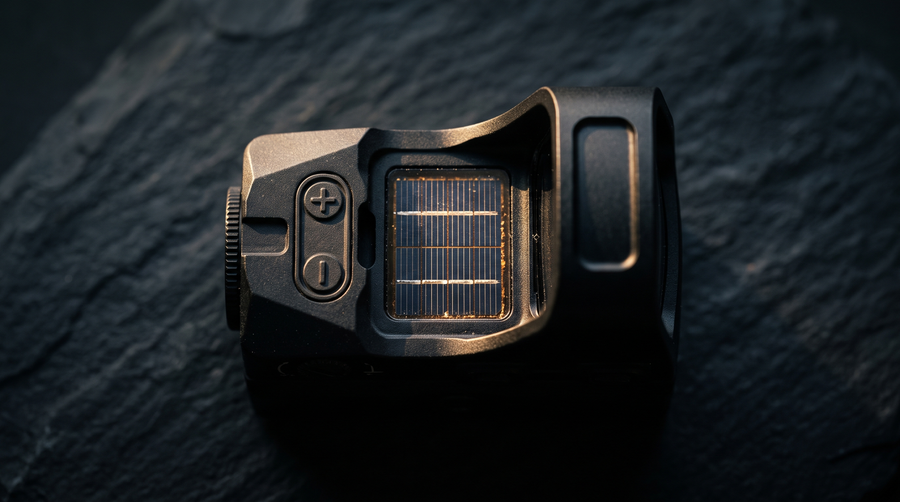

If you run a Holosun with Solar Failsafe, know which mode it is in. Holosun states that in Auto mode, in darkness or with the solar cell covered, the reticle dims to a night-vision-compatible setting only visible through a night vision device. For naked-eye shooting at dusk, switch to manual mode and set the brightness yourself. More on how the solar and motion systems behave is in Shake Awake, Solar Failsafe and 50,000-hour batteries.
Weapon lights, IR and night vision
Night vision changes the lighting question too. A white beam through an intensifier floods the scene the tube is trying to amplify, so NV work pairs with infrared illumination, which the tube can see and the naked eye cannot. Several lights we stock build this in:
- The Streamlight TLR-VIR II combines 300 lumens of white light with an 850 nm IR illuminator and an 850 nm Class 1 IR laser. A three-position selector switches between IR, safe and white light.
- The Streamlight ProTac Rail Mount VIR Pro is a long-gun light with both white and IR output.
- The Holosun P.ID Dual adds green and IR lasers to a weapon light.
- Holosun's ARO EVO Dual and AEMS EVO Dual put a green laser and an 850 nm Class 1 IR laser inside the red dot itself.
Two cautions carry over from white light. An IR beam is still a light source, visible to anyone else using night vision. And because it is invisible to your naked eye, the only way to confirm it is on, or off, is through the tube, so build that check into your routine. The weapon light and laser combos collection shows the options.
UK note
Owning an NV-compatible optic and using night vision on quarry are different questions, and the rules on the second depend on the species and on which part of the UK you are in. We cover them, with the primary sources, in Is night vision legal in the UK? Check that page, your certificate conditions and your police firearms licensing department before planning night work around any quarry.
Buying once, buying right
NV capability costs little at the point of purchase and a lot to add later. A sight with dedicated NV settings is often priced close to its daylight-only sibling. An EOTech with NV modes is a model choice, not a different product, and a light with an IR option is chosen at the point of sale. The alternative, finding out after buying a tube that your optic blooms uselessly behind it, means replacing an otherwise good sight.
So the honest rule is this. If there is any realistic chance of night vision entering your shooting within the life of the optic, buy the NV-capable version now. If there genuinely is not, for a range-only setup or a daylight stalking rifle, save the money without guilt. Our guide to optics for fox and night vermin control covers where NV sits among the other night options.
Frequently asked questions
Can I just use my red dot's lowest normal setting with night vision?
Usually not. Even the lowest daylight setting is typically far too bright for an intensifier, so the dot blooms and swamps the image. Dedicated NV settings sit below the daylight range and show as a clean point through the tube.
Will a bright dot damage my night vision device?
Follow your night vision maker's guidance on bright sources. NV settings are designed to be viewed through a device, so use them, and keep daylight settings, white lights and torches out of the tube's view.
Do I need an IR illuminator as well as night vision?
It depends on the ambient light. Intensifiers need some light to amplify. On overcast, moonless nights an IR illuminator makes a large difference, which is why many NV users treat one as standard kit.
Why does my EOTech not have NV settings?
Check the model number. EOTech's EXPS2 and XPS2 are non-night-vision versions; the EXPS3 and XPS3 add 10 NV settings.
