Holosun RONIN AEMS MAX Red Dot Sight Multi-Reticle System
- Reticle
- red Multi-Reticle System — selectable 2 MOA dot, 65 MOA circle,...
- Window
- 1.57 × 1.18 in (40 × 30 mm), the largest in...
- Emitter
- 650 nm red LED, fully enclosed behind a sealed window
- Electronics
- Solar Failsafe supplemental power plus Shake Awake motion activation
In stock — 7–10 business day delivery
Tracked delivery, estimated 7–10 working days
Want to know when it's back? Email us and we'll let you know
Multi-buy savings
Mix any optics and lights — applied automatically
- 5%2 items
- 10%3 items
- 15%4 or more
Applied automatically at checkout — no code needed. Accessories such as tailcaps, switches and mounts aren't included.
Complete your setup
- Shipped from the UK with tracked delivery
- 30-day returns on unused items
- Warranty support — contact us first
Delivery
Every order is shipped from the UK with tracked delivery. Estimated delivery time is 7–10 working days, and you will receive tracking details by email as soon as your order is on its way.
Returns
Unused items in their original packaging can be returned within 30 days. Email info@opticstrader.co.uk first and we will confirm the return details.
Warranty
Every product is new and boxed. If anything goes wrong, contact us first and we'll help with a manufacturer warranty claim where one applies.

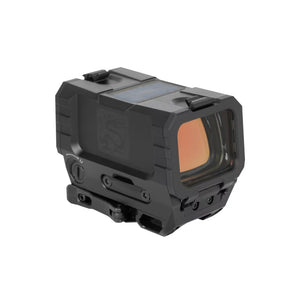

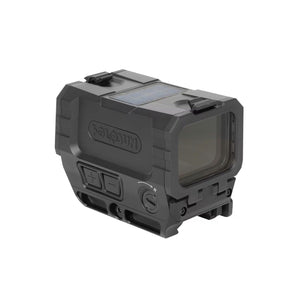

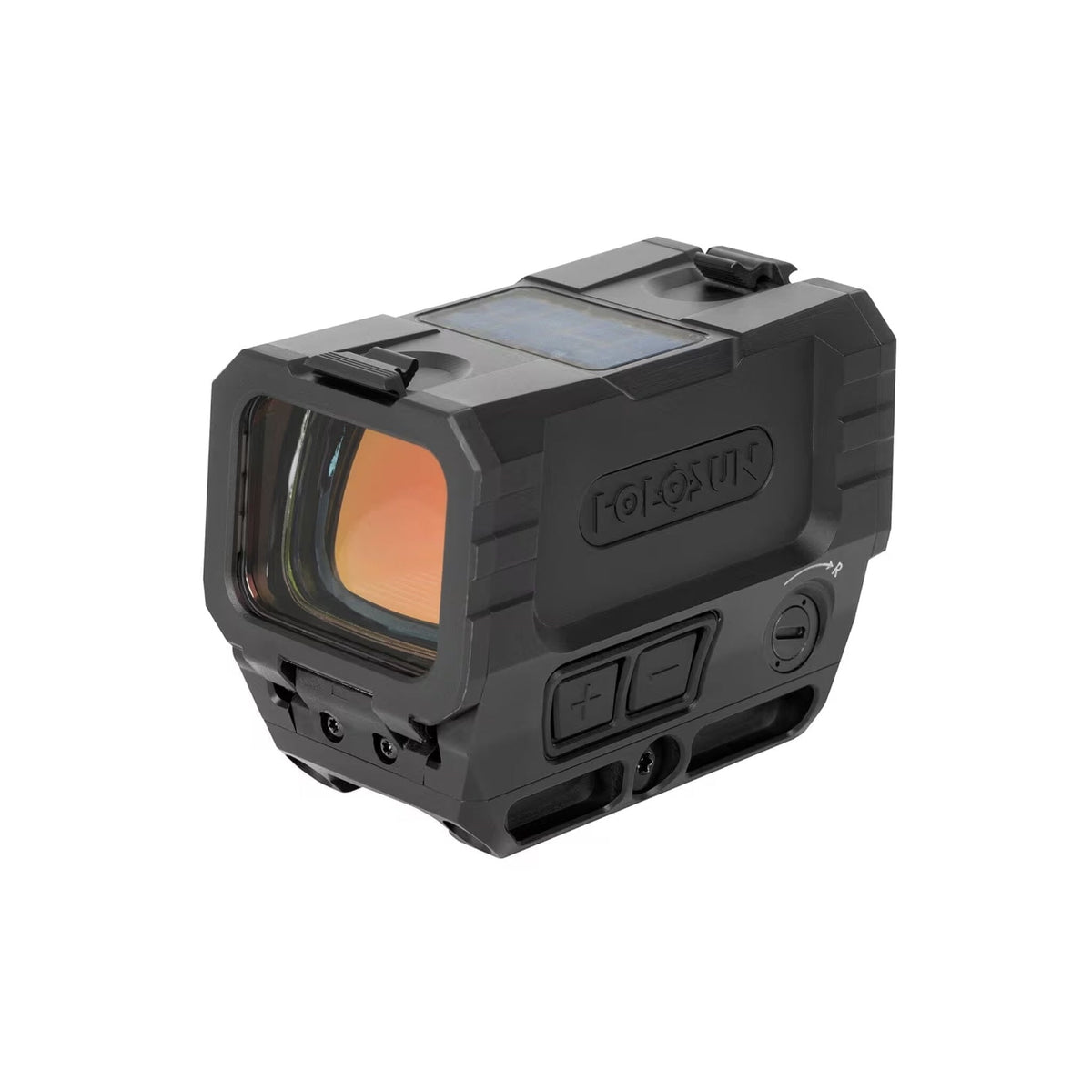

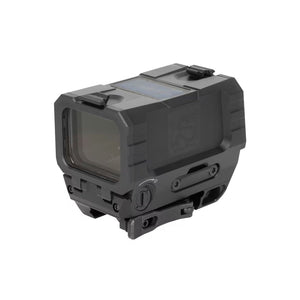

The Holosun RONIN AEMS MAX Red Dot Sight (RONIN-AEMS-MAX-RD) is a 1x enclosed rifle red dot sight with the Multi-Reticle System — a 2 MOA red dot, a 65 MOA circle, or both together as a circle-dot — behind a 1.57 × 1.18 in (40 × 30 mm) window, supplied with a Picatinny mount. UPC 810047073239.
Developed with Tu Lam of Ronin Tactics, the AEMS MAX carries the largest viewing window in the Holosun range in a fully enclosed housing, which is the combination that makes it worth the size: an enormous, uninterrupted sight picture for fast transitions, with the emitter sealed away from rain and debris. Solar Failsafe supplements the side-mounted CR2032 and Shake Awake sleeps the reticle when the rifle is still, for up to 50,000 hours of runtime. The 7075-T6 aluminium housing is Hard Anodized, rated IPX8 and 1000G.
How it compares
The same optic in green is the RONIN AEMS MAX green dot sight. For a smaller enclosed rifle optic, the AEMS Macro red dot sight and AEMS Micro red dot sight use the same reticle set in a lighter body. To put magnification behind it, the HM3X 3x flip-to-side magnifier or the HM6X 6x magnifier mount behind it on the same rail. Browse all Holosun rifle red dot sights and every enclosed red dot sight we stock.
Ideal for
- Civilian Service Rifle and practical rifle on straight-pull AR-pattern carbines
- Practical shotgun and 3-Gun, where the 65 MOA circle drives fast close hits
- Pistol-calibre carbines and rimfire rifles running a Picatinny rail
- Wet British range days, where a sealed emitter keeps the dot clear
Key features
- Reticle: red Multi-Reticle System — selectable 2 MOA dot, 65 MOA circle, or circle-dot
- Window: 1.57 × 1.18 in (40 × 30 mm), the largest in the Holosun range
- Emitter: 650 nm red LED, fully enclosed behind a sealed window
- Electronics: Solar Failsafe supplemental power plus Shake Awake motion activation
- Illumination: 12 brightness settings — 8 daylight and 4 night-vision compatible
- Battery: side-mounted CR2032 tray, up to 50,000 hours of runtime
- Adjustment: 0.5 MOA per click, ±50 MOA windage and elevation travel
- Housing: 7075-T6 aluminium, Hard Anodized, IPX8 and 1000G rated
| Optic Type | Enclosed rifle red dot sight, 1x (non-magnified) |
| Reticle | Multi-Reticle System — 2 MOA dot / 65 MOA circle / circle-dot |
| Reticle Colour | Red |
| Light Source | 650 nm red LED |
| Objective Window Size | 1.57 × 1.18 in (40 × 30 mm) |
| Illumination | 12 brightness settings — 8 daylight / 4 night-vision compatible |
| Battery | CR2032 in a side-mounted tray, up to 50,000 hours |
| Solar Support | Solar Failsafe supplemental power |
| Click Value | 0.5 MOA per click |
| Adjustment Range | ±50 MOA windage and elevation travel |
| Parallax | Parallax-free |
| Eye Relief | Unlimited (non-critical eye relief) |
| Housing / Finish | 7075-T6 aluminium, Hard Anodized |
| Water Resistance | IPX8 waterproof |
| Shock Rating | 1000G |
| Dimensions | 1.94 × 2.51 in (49.3 × 63.8 mm) |
| Weight | 10.4 oz (295 g) |
| Mount | Picatinny mount included |
| MPN / UPC | RONIN-AEMS-MAX-RD / 810047073239 |
How big is the window on the Holosun RONIN AEMS MAX?

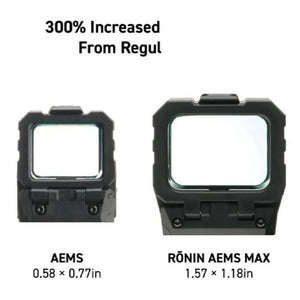

The objective window on the Holosun RONIN AEMS MAX Red Dot Sight measures 1.57 × 1.18 in (40 × 30 mm), which Holosun states is the largest in its range. That is what gives the wide, uninterrupted sight picture the optic is built around.
What reticle options does the Holosun RONIN AEMS MAX have?

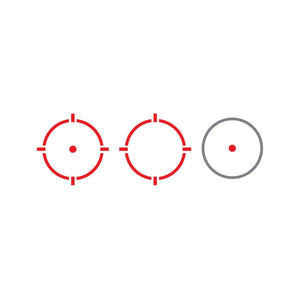

The Holosun RONIN AEMS MAX uses the Multi-Reticle System, which switches between a 2 MOA red dot on its own, a 65 MOA circle on its own, and both together as a circle-dot. The 65 MOA circle is the fast reference at close range and the 2 MOA dot is the precise one.
Does the Holosun RONIN AEMS MAX come with a mount?
Yes. The Holosun RONIN AEMS MAX is supplied with a Picatinny mount, so it fits any standard Picatinny rail section on a flat-top receiver without a separate purchase.
What battery does the Holosun RONIN AEMS MAX use?

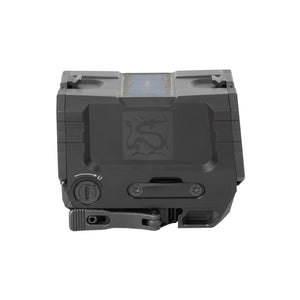

The Holosun RONIN AEMS MAX uses one CR2032 cell in a side-mounted tray, so the battery can be changed with the optic still on the rifle and zeroed. With Solar Failsafe and Shake Awake, Holosun rates the runtime at up to 50,000 hours.
Is the Holosun RONIN AEMS MAX waterproof?
The Holosun RONIN AEMS MAX is rated IPX8 waterproof and 1000G shock resistant, in a 7075-T6 aluminium housing with a Hard Anodized finish. The enclosed window also keeps rain and debris off the emitter.
Is the Holosun RONIN AEMS MAX night-vision compatible?
Yes. Four of the twelve brightness settings on the Holosun RONIN AEMS MAX are night-vision compatible, with the other eight for daylight use.
