Streamlight TLR RM 1 HL-X USB System Weapon Light 1000 Lumens
- 1000 lumens / 22,000 candela / 297 metres on the SL-B9 USB-C...
- 500 lumens on a CR123A lithium cell, for 1.5 hours
- Complete System
- remote pressure switch, key kit and mounting hardware supplied
- Push-button tail switch and remote operate independently
In stock — 7–10 business day delivery
Tracked delivery, estimated 7–10 working days
Want to know when it's back? Email us and we'll let you know
Multi-buy savings
Mix any optics and lights — applied automatically
- 5%2 items
- 10%3 items
- 15%4 or more
Applied automatically at checkout — no code needed. Accessories such as tailcaps, switches and mounts aren't included.
Complete your setup
- Shipped from the UK with tracked delivery
- 30-day returns on unused items
- Warranty support — contact us first
Delivery
Every order is shipped from the UK with tracked delivery. Estimated delivery time is 7–10 working days, and you will receive tracking details by email as soon as your order is on its way.
Returns
Unused items in their original packaging can be returned within 30 days. Email info@opticstrader.co.uk first and we will confirm the return details.
Warranty
Every product is new and boxed. If anything goes wrong, contact us first and we'll help with a manufacturer warranty claim where one applies.

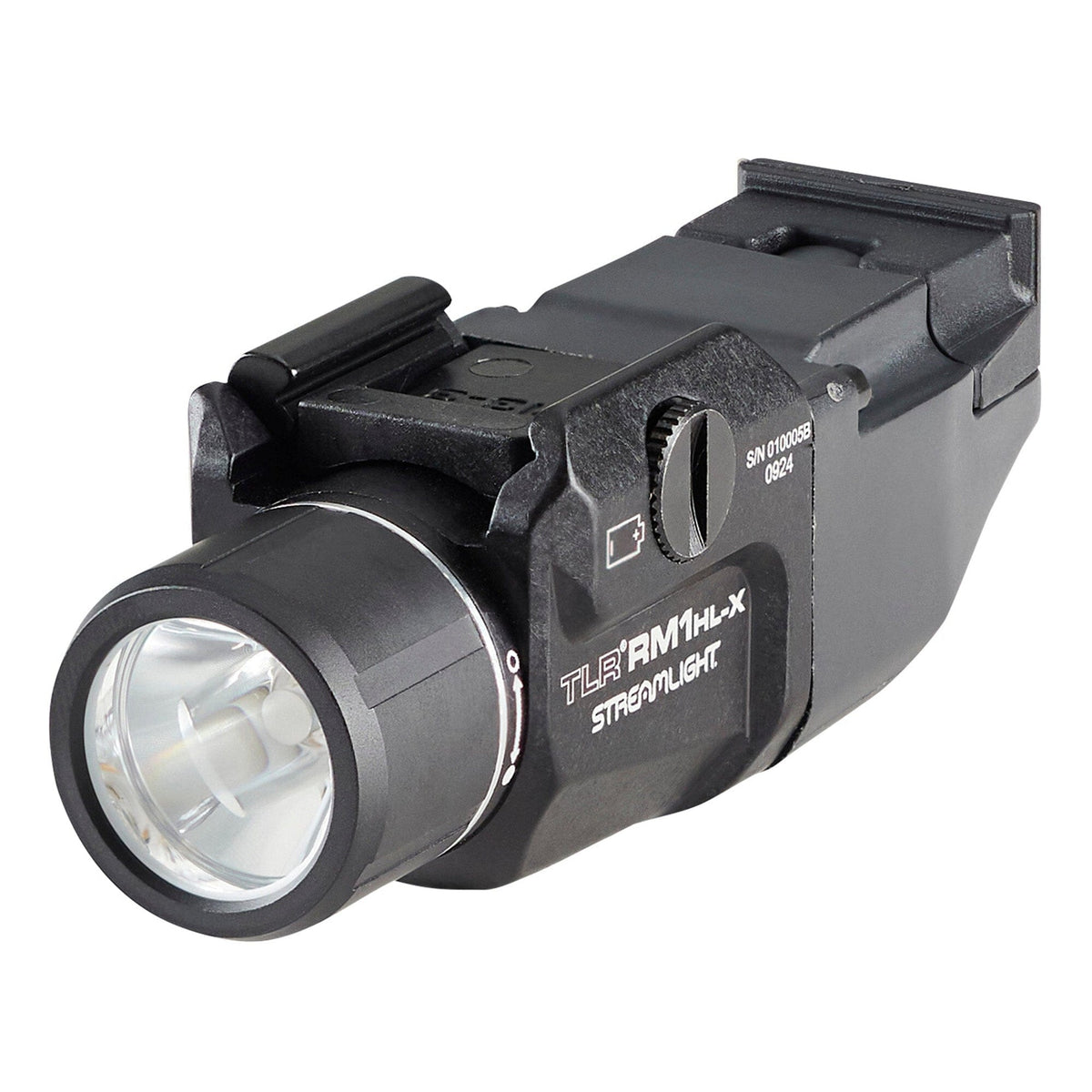

The Streamlight TLR RM 1 HL-X USB System Weapon Light (part 69483) is a compact single-cell rifle weapon light that brings high-lumen multi-fuel power to the low-profile RM 1 body. On the SL-B9 USB-C rechargeable pack supplied it produces 1000 lumens output and 22,000 candela peak beam intensity for a 297-metre beam; on a CR123A lithium cell it runs 500 lumens for 1.5 hours.

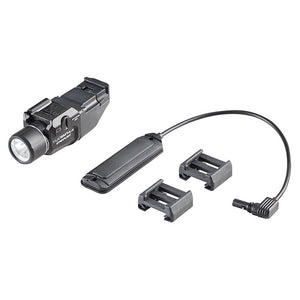

This is the System package: the remote pressure switch, key kit and mounting hardware are all in the box, ready to mount, and the push-button tail switch and remote work independently so one backs up the other. It mounts to MIL-STD-1913 Picatinny, measures 3.64 in and weighs around 3 oz, rated IPX7.
How it compares
Want the standard-output version? The TLR RM 1 System rifle weapon light at 500 lumens. Want the larger two-cell body? The TLR RM 2 System. Want an aiming laser as well? The TLR RM 2 Laser-G System with a green laser. Want far more throw? The TLR-1 HP-X at 77,000 candela. Read the Streamlight TLR comparison guide, or browse all rechargeable weapon lights and weapon light accessories.
Ideal for
- AR-pattern rifles, carbines and straight-pull builds
- Practical shotgun and 3-Gun stages
- Civilian Service Rifle and range work after dark
- Farm, kennels and yard work after dark
- Airsoft skirmish and milsim night games
Key features
- 1000 lumens / 22,000 candela / 297 metres on the SL-B9 USB-C pack (included)
- 500 lumens on a CR123A lithium cell, for 1.5 hours
- Complete System: remote pressure switch, key kit and mounting hardware supplied

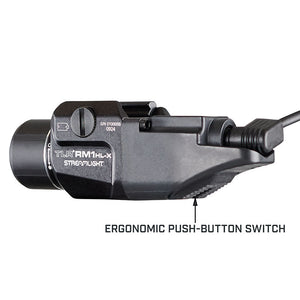

- Push-button tail switch and remote operate independently
- Mounts to MIL-STD-1913 Picatinny; 3.64 in / 3.02–3.12 oz
- IPX7 — waterproof to 1 metre for 30 minutes
| Output (SL-B9) | 1000 lumens / 22,000 candela / 297 metres (30 minutes at full output) |
| Output (CR123A) | 500 lumens (1.5 hours) |
| Battery | One SL-B9 USB-C rechargeable pack (included) or one CR123A lithium cell |
| Activation | Push-button tail switch plus remote pressure switch, operating independently |
| Mount | MIL-STD-1913 Picatinny |
| Length / Weight | 3.64 in / 3.02–3.12 oz |
| Durability | IPX7 — waterproof to 1 metre for 30 minutes |
| SKU / MPN / UPC | 69483 / 69483 / 080926694835 |
What does the Streamlight TLR RM 1 HL-X USB System (69483) mount to?
The Streamlight TLR RM 1 HL-X USB System mounts to MIL-STD-1913 Picatinny rails using the key kit and mounting hardware supplied in the box, so it suits AR-pattern rifles, carbines and any long gun with a Picatinny section.
How bright is the Streamlight TLR RM 1 HL-X and how far does the beam reach?
The Streamlight TLR RM 1 HL-X produces 1000 lumens output and 22,000 candela peak beam intensity on its SL-B9 rechargeable pack, which gives a beam distance of 297 metres; on a CR123A lithium cell it runs 500 lumens.
Is the Streamlight TLR RM 1 HL-X rechargeable, and what is in the box?

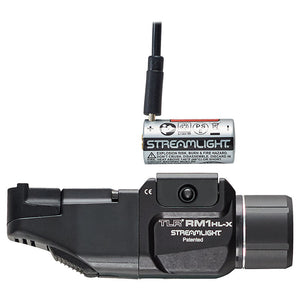

Yes — the Streamlight TLR RM 1 HL-X USB System is supplied with an SL-B9 USB-C rechargeable battery pack and a USB-C charging cord, along with the remote pressure switch, key kit and mounting hardware. It is multi-fuel, so a CR123A lithium cell can be fitted instead.
How long does the Streamlight TLR RM 1 HL-X run for?
The Streamlight TLR RM 1 HL-X runs for 30 minutes at the full 1000 lumens on its SL-B9 pack, or 1.5 hours at 500 lumens on a CR123A lithium cell.
How is the Streamlight TLR RM 1 HL-X different from the standard TLR RM 1?
The Streamlight TLR RM 1 HL-X doubles output to 1000 lumens and 22,000 candela on the rechargeable SL-B9 pack, against 500 lumens and 11,000 candela for the standard TLR RM 1, in the same compact single-cell body.
Do the push-button and the remote switch work independently on the Streamlight TLR RM 1 HL-X?
Yes — on the Streamlight TLR RM 1 HL-X the push-button tail switch and the remote pressure switch operate independently, so either one will work if the other is knocked or damaged.
