Primary ArmsRifle Scope
Primary Arms PLxC 1-8x24 LPVO Rifle Scope FFP RDB Illuminated ACSS Raptor 5.56/.308 Yard G2 Reticle Black
- Magnification
- True 1-8x in a body only 9.28 in (236 mm) long...
- Focal plane
- First focal plane — the reticle scales with magnification, so ranging...
- Reticle
- ACSS Raptor 5.56/.308 Yard G2, with bullet drop compensation, ranging and...
- Illumination
- Red Dot Bright, bright enough to use the centre chevron like...
In stock — 7–10 business day delivery
Tracked delivery, estimated 7–10 working days
Want to know when it's back? Email us and we'll let you know
Multi-buy savings
Mix any optics and lights — applied automatically
- 5%2 items
- 10%3 items
- 15%4 or more
Applied automatically at checkout — no code needed. Accessories such as tailcaps, switches and mounts aren't included.
Complete your setup
- Shipped from the UK with tracked delivery
- 30-day returns on unused items
- Warranty support — contact us first
Delivery
Every order is shipped from the UK with tracked delivery. Estimated delivery time is 7–10 working days, and you will receive tracking details by email as soon as your order is on its way.
Returns
Unused items in their original packaging can be returned within 30 days. Email info@opticstrader.co.uk first and we will confirm the return details.
Warranty
Every product is new and boxed. If anything goes wrong, contact us first and we'll help with a manufacturer warranty claim where one applies.

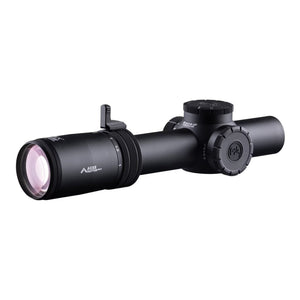

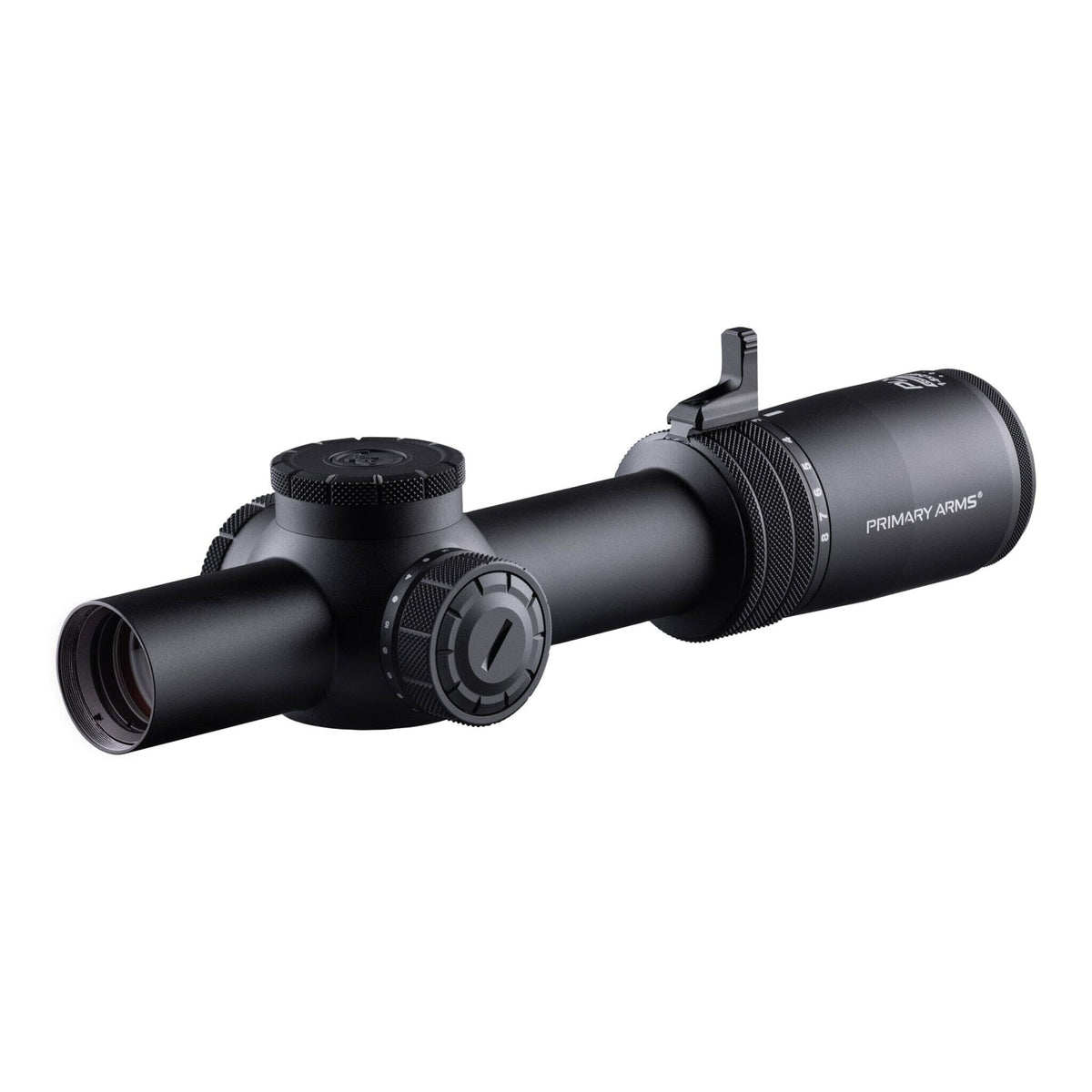

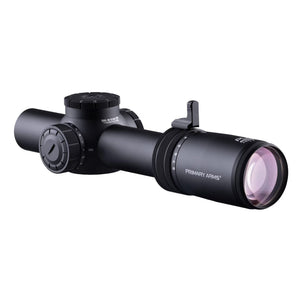

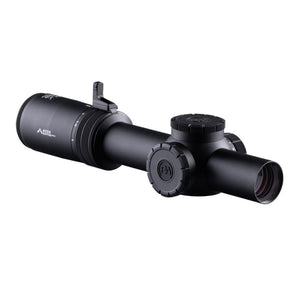

The Primary Arms PLxC 1-8x24 FFP Rifle Scope in black (part number 610210, SKU PA-PLXC-1-8X24F-RDB-RAPTOR-5.56Y-G2) is a 1-8x magnification, 24 mm objective low-power variable optic on a 30 mm tube, with a first focal plane (FFP) ACSS Raptor 5.56/.308 Yard G2 reticle and Red Dot Bright illumination. It is 9.28 in (236 mm) long, weighs 16.95 oz (481 g), and adjusts in 0.1 MIL clicks with 100 MOA of windage and elevation travel.
First focal plane is the reason to buy this one. Because the reticle grows and shrinks with the image, the ACSS Raptor's bullet drop holdovers, ranging stadia and wind marks measure correctly at 3x, at 5x and at 8x, not only at one magnification. Red Dot Bright illumination then drives the centre chevron hard enough that at 1x it works like a red dot sight, which is the compromise most first-focal-plane LPVOs fail to solve.
How it compares
This is the calibre-specific first-focal-plane option in black. The same optic is available in Flat Dark Earth with the ACSS Raptor 5.56/.308 Yard G2 reticle. For a milliradian grid rather than a calibre-specific reticle, the Japanese-made PLxC 1-8x24 FFP with the ACSS Griffin MIL G2 reticle adds ED glass and AutoLive. For a second-focal-plane alternative with a larger low-power reticle, see the PLxC 1-8x24 SFP with the ACSS Nova reticle. For more magnification in a first-focal-plane body, the PLxC 1.5-12x36 with the ACSS Raptor 5.56/.308 reticle reaches 12x. Browse the Primary Arms LPVO range and read our guide to first and second focal plane scopes.
Ideal for
- Civilian Service Rifle and practical rifle shot in 5.56 or .308, where ranges are called in yards
- Straight-pull AR-platform rifles in Great Britain needing correct holdovers at any magnification
- Practical shotgun and 3-Gun stages that switch magnification between targets
- Deer stalking with .308, using the reticle's ranging and drop marks rather than dialling
Key features
- Magnification: True 1-8x in a body only 9.28 in (236 mm) long and 16.95 oz (481 g)
- Focal plane: First focal plane — the reticle scales with magnification, so ranging and holdovers are correct at every power

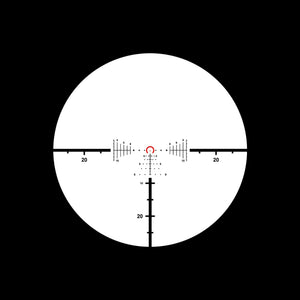

- Reticle: ACSS Raptor 5.56/.308 Yard G2, with bullet drop compensation, ranging and wind holds calibrated for 5.56 and .308 in yards
- Illumination: Red Dot Bright, bright enough to use the centre chevron like a red dot at 1x, from one CR2032 cell
- Turrets: 0.1 MIL per click, 100 MOA of windage and elevation travel
- Glass: Premium PLx Compact optical system
- Tube: 30 mm, requiring 30 mm rings or a 30 mm cantilever mount
- Finish: Black anodised
| Magnification / Objective | 1-8x magnification, 24 mm objective |
| Focal Plane | First focal plane (FFP) |
| Reticle | ACSS Raptor 5.56/.308 Yard G2, Red Dot Bright illuminated |
| Illumination | Red Dot Bright (RDB), daylight-bright |
| Tube Diameter | 30 mm |
| Click Value | 0.1 MIL per click |
| Adjustment Range | 100 MOA windage and elevation |
| Eye Relief | 3.2–3.5 in (81–89 mm) |
| Battery | CR2032 |
| Length / Weight | 9.28 in (236 mm) / 16.95 oz (481 g) |
| Finish | Black anodised |
| Mount | Requires 30 mm rings or a 30 mm cantilever mount, sold separately |
| SKU / MPN / UPC | PA-PLXC-1-8X24F-RDB-RAPTOR-5.56Y-G2 / 610210 / 818500016892 |
Which calibre is the ACSS Raptor 5.56/.308 Yard G2 reticle calibrated for?
The ACSS Raptor 5.56/.308 Yard G2 reticle is calibrated for both 5.56 and .308, and its ranging and holdover marks are laid out in yards.
What does the ACSS Raptor reticle actually do?
The ACSS Raptor combines bullet drop compensation so you hold over rather than dial for distance, ranging stadia that estimate the distance to a target of known size, moving-target leads, and wind holds either side of centre, all in one reticle.
What does first focal plane mean, and why does it matter here?
First focal plane means the reticle grows and shrinks with the image as magnification changes, so the ACSS Raptor's ranging and holdover marks measure correctly at every power rather than at one stated magnification only.
Is a first-focal-plane reticle usable at 1x?
Yes, on this scope. At 1x a first-focal-plane reticle is at its smallest, which is why Primary Arms fits Red Dot Bright illumination — the centre chevron is driven bright enough to be used like a red dot sight for close work.
What mount does the Primary Arms PLxC 1-8x24 FFP need?
The Primary Arms PLxC 1-8x24 FFP has a 30 mm tube, so it requires 30 mm rings or a 30 mm cantilever mount. No mount is included with the scope.
Should I choose the Raptor or the Griffin MIL G2 reticle?
Choose the ACSS Raptor 5.56/.308 Yard G2 if you shoot 5.56 or .308 and want ready-made holdovers in yards, and choose the ACSS Griffin MIL G2 if you prefer a full milliradian grid that suits any cartridge.
Every order is shipped from the UK with tracked delivery, with an estimated delivery time of 7–10 working days. Unused items in their original packaging can be returned within 30 days for a full refund.
